E3 Spark Plugs

Drawing upon years of expertise in spark plug engineering and the automotive aftermarket, the leaders at E3 Spark Plugs recognized the necessity for a groundbreaking approach to electrode design, aiming to enhance the ignition of raw fuel within the engine’s combustion chamber. Today, E3 remains dedicated to reducing greenhouse gas emissions by limiting the amount of unburned fuel.

E3 Spark Plugs

Coil-On-Plug

E3.251

Cross Reference: Heavy-duty Trucks & Bus

  • Natural Gas, CNG, Cummins L Gas Plus,
    RNG, LNG, RLNG, ISL G, ISL G NZ, L9N
  • Cummins 3975150, 5310990, 5626388

Ignition Coil Type: COP (Coil-on-Plug Ignition System)

Housing: PBT-G25 High Strengh & Strong Dielectric
Properties

Core: Copper Winding, Aluminum Contact

Insulating Tube: Translucent FEP, Strong Dielectric
Properties

Spring: Stainless Steel SUS304

Boot: Methyl Vinyl Silicone Rubber Rated 500°F /
260°C

Dielectric Grease: Dupont® Krytox 205

Connector Type: 4 Pin Socket

Secondary Output Terminal Quantity: 1

Primary System Voltage: 12 to 14 Volts

Secondary Output Voltage Range: 15 kV – 20 kV

Secondary Output Voltage Capacity: 40 kV

E3.251 Coil-on-Plug Packaged: 1 per box , 12 per case, 24 per master case

Additional Info: Coil head & extension ignition
capacity, extreme heat, durability and reliability
exceed OEM.

Methyl vinyl silicone rubber boot rating 500°F / 260°C
and strong dielectric properties exceed OEM.
Translucent FEP tube, strong dielectric properties
exceed OEM.

Stainless steel spring, increased spark plug contact
and durability exceed OEM.

Competitively priced coil-on-plug alternative.
90 day warranty for manufacturer’s defects and
materials.

Spark Plug Kit

E3.261

Cross Reference: Heavy-Duty Trucks & Bus

  • Natural Gas, CNG, LNG, RNG
  • Cummins C Gas Plus, L gas Plus, ISL G,
    ISL G NZ, L9N
  • Cummins 4089869, 4955226, 4955850,
    5473009, 5473010
  • Cummins 6 Pack 5633408
  • Denso 674-2000, 674-2002
  • Denso 6 Pack 674-2008

Ignition Coil Type: COP (Coil-on-Plug Ignition System)

Ignition Coil Type: COP (Coil-on-Plug Ignition System)

Housing: PBT-G25 High Strengh & Strong Dielectric
Properties

Core: Copper Winding, Aluminum Contact

Insulating Tube: Translucent FEP, Strong Dielectric
Properties

Spring: Stainless Steel SUS304

Boot: Methyl Vinyl Silicone Rubber Rated 500°F /
260°C

Dielectric Grease: Dupont® Krytox 205

Connector Type: 4 Pin Socket

Secondary Output Terminal Quantity: 1

Primary System Voltage: 12 to 14 Volts

Secondary Output Voltage Range: 15 kV – 20 kV

Secondary Output Voltage Capacity: 40 kV

E3.251 Coil-on-Plug Packaged: 1 per box , 12 per case, 24 per master case

Additional Info: Coil head & extension ignition
capacity, extreme heat, durability and reliability
exceed OEM.

Methyl vinyl silicone rubber boot rating 500°F / 260°C
and strong dielectric properties exceed OEM.
Translucent FEP tube, strong dielectric properties
exceed OEM.

Stainless steel spring, increased spark plug contact
and durability exceed OEM.

Competitively priced coil-on-plug alternative.
90 day warranty for manufacturer’s defects and
materials.

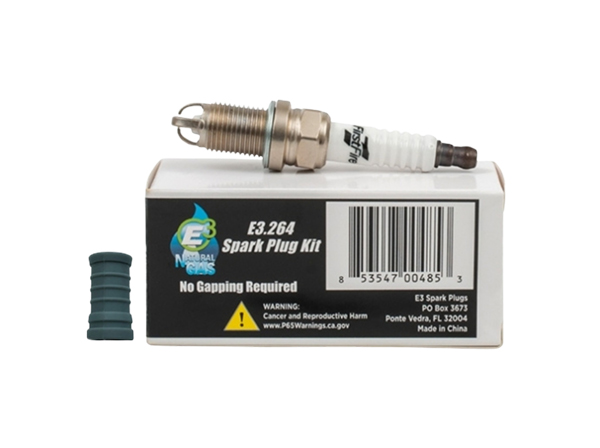

Spark Plug Kit

E3.264

Cross References: Heavy-Duty Truck & Bus

  • Natural Gas, CNG, LNG, RNG
  • Cummins ISX12 G, ISX12N
  • Cummins 4309391, 5633754
  • Cummins 6 pack 5633285, 5633756
  • Denso 674-2001, 674-2003
  • Denso 6 pack 674-2007

Spark Plug Type: Long Life Double
Iridium -Rhodium

SAE Standard: J548/1_201303 or SAE J548/1

IATF Standard: IATF 16949:2016

ISO Standard: ISO 9001:2015

Resistor: Fired In Suppressor Seal FISS

Hex Size: 5/8″ (16mm)

Thread Reach: 0.750″ (19mm)

Thread Diameter: 14mm

Shell: Cold Rolled Steel, Nickel-Electrolytic Plated

Seat: Gasket

Insulator: Dielectric Ceramic 95% Alumina

Insulator Height: 1.553” (39.45 mm)

Center Electrode: Nickel Alloy/Copper Core, 0.8mm

Iridium-Rhodium Alloy – 360° Laser Welded

Ground Electrode: Nickel Alloy, 1.2mm

Iridium-Rhodium Alloy – 360° Laser Welded

Gap: 0.014″ (0.355mm)

Torque Value: 28 ft-lb (38 N-m)

Boot: Methyl Vinyl Silicone Rubber Rating 500ºF /
260ºC, DuPont® Krytox 205 Dielectric Grease
Package Contents: (1) Spark Plug, (1) Boot with
dielectric grease applied

Packaged: 1 per box, 48 boxes per case, 96 per
master case

VMRS Code: 033-003-005

Additional Info: Long Life Double Iridium-Rhodium
technology acquired from natural gas industrial
engines

Iridium-Rhodium alloy center electrode surface
exceeds OEM by 30%.

Higher Iridium-Rhodium alloy melting points reduce
incidents of alloy melting/bridging the gap, misfires.
Methyl vinyl silicone rubber boots rating 500°F / 260°
C and stronger dielectric properties exceed OEM.
DuPont® Krytox 205 dielectric grease pre-applied to
boots meets OEM requirements, fleet time saver.
90 day warranty for manufacture’s defects and
materials.

Boot

E3.271

Cross Reference: Heavy-Duty Truck & Bus

  • Natural Gas, CNG, LNG, RNG
  • Cummins C8.3G, C Gas Plus, L Gas Plus,
    ISL G, ISL G NZ, L9N
  • Cummins 3973945, 4989131
  • Denso 674-1000

IATF Standard: IATF 16949:2016

ISO Standard: ISO 9001:2015

Material: Silicone Rubber

Packaged: packaged 1dielectric grease pack and 6
boots

Packaged: 48 boots and 8 dielectric grease packs
per case

Minimum Order: 6 boots

Additional Info: E3.271 Boots are engineered to
OEM specifications durability and ignition insulator for
natural gas powered vehicles. Natural gas vehicles
require spark plugs and ignition coils delivering
robust ignition, yet withstand extreme heat, pressure
and contamination. Competitively priced OEM
alternative

Coil Extension

E3.272

Cross Reference:

  • Natural Gas, CNG, RNG, LNG, RLNG,
  • Cummins L Gas Plus, ISL G, ISL G NZ,
    L9N
  • Cummins 5265337

Ignition Coil Type: COP

(Coil-on-Plug Ignition System)

IATF Standard: IATF 16949:2016

ISO Standard: ISO 9001:2015

Housing: PBT-G25 High Strength & Strong Dielectric
Properties

Seal: Silicone Rubber

Insulating Tube: Translucent FEP, Strong Dielectric
Properties

Spring: Stainless Steel SUS304

Boot: Methyl Vinyl Silicone Rubber Rated 500°F /
260°C

Dielectric Grease: DuPont® Krytox 205

Connector Type: 4 Pin Socket

Primary System Voltage: 12 to 14 Volts

Secondary Output Voltage Normal Operational

Range: 15 kV – 20 kV

Secondary Output Voltage Maximun Capacity: 40 kV
E3.272 Extension Packaged: 1 per box, 12 per case,
96 per master case

Additional Info: Coil extension ignition capacity,
extreme heat, durability and reliability exceed OEM.
Methyl vinyl silicon rubber boot ratin 500°F / 260°C
and strong dielectric properties exceed OEM.
Translucent FEP tube, strong dielectric properties
exceed OEM.

DuPont® Krytox 205 dielectric grease pre-applied to
boots and seals meets OEM requirements.
Stailess steel spring, increased spark plug contact
and durability exceed OEM.
Competitively priced coil extension alternative.
90 day warranty by manufacturer’s defect and
materials.

Spark Plug

E3.34

Cross References:

  • CHAMPION: RN9YC, RN11YC, RN12YC
  • NGK: BPR5ES, BPR6ES, BPR7ES,
    BR5ES

Resistor. Resistor

Hex Size: 13/16″

Thread Reach: 0.750″

Thread Diameter: 14mm

Seat: Gasket

Tip/Gap: DiamondFIRE Fixed Gap Cannot Be
Adjusted

Additional Info: E3.34 is a 14mm, 0.750” reach plug
with a gasket seat. It is used in a variety of
powersport applications, especially older Harley
Davidson motorcycles. The patented DiamondFIRE
ground electrode is secured to the shell with two legs
to help facilitate heat transfer, and to withstand the
intense vibration of powersport engine applications.
The unique DiamondFIRE side wire is proven to
increase power, reduce fuel consumption and
improve hydrocarbon emissions in long-term use.
The E3 ground electrode and full-size center
electrode also provides optimal performance over an
extended product life.

Spark Plug

E3.53

Cross Reference: Automotive plug that fits in a
variety of domestic applications.

Resistor: Resistor

Hex Size: 5/8″

Thread Reach: 0.708″

Thread Diameter: 14mm

Seat: Taper

Tip/Gap: DiamondFIRE Fixed Gap Cannot Be
Adjusted

Additional Info: E3.53 is a 14mm, .708” reach plug
with a taper seat. It fits domestic applications, and is
widely available in automotive retail stores. E3
automotive plugs have three legs securing the
DiamondFire electrode to the shell. This allows for
excellent heat transfer, and helps to create more
turbulence in the cylinder. The patented DiamondFire
side wire is proven to increase power, reduce fuel
consumption and improve hydrocarbon emissions in
long-term use. The unique ground electrode and
full-size center electrode also provides optimal
performance for a guaranteed five years or 100,000
miles.

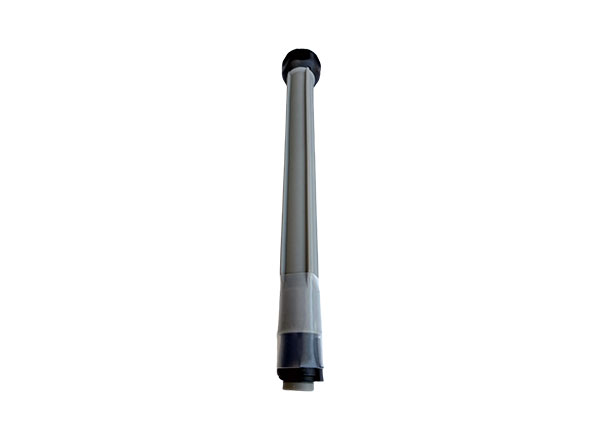

Extension

E3.275

Cross Reference: Heavy-Duty Truck & Bus

  • Natural Gas, CNG, LNG, RNG
  • Cummins Engines ISX12 G, ISX12N
  • Cummins 2899547, 4387015, 4389407,
    5581556

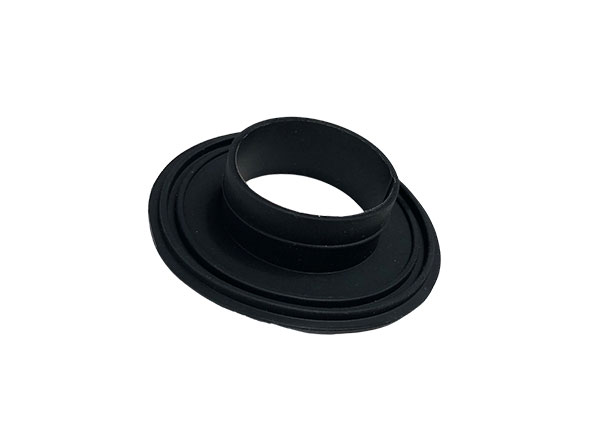

Grommet

E3.276

Cross Reference: Heavy-Duty Truck & Bus

  • Natural Gas, CNG, LNG, RNG
  • Cummins Engines ISB6.7G, B6.7N, ISX12
    G, ISX12N
  • Cummins 2888359, 5581559

Coil Head

E3.277

Cross Reference: Heavy-Duty Truck & Bus

  • Natural Gas CNG, LNG, RNG
  • Cummins Engines ISB6.7G, B6.7N, ISX12
    G, ISX12N
  • Cummins 5411556, 5581560

Ignition Coil Type: Coil-on-Plug
Ignition Coil (COP)

IATF Standard: IATF 16949:2016

ISO Standard: ISO 9001:2015

Housing: PBT-G25 High Strength & Strong Dielectric
Properties

Core: Copper Winding, Aluminum Contact

Grommet: Silicone Rubber

Extension Connection Seal: Silicone Rubber

Extension: Methyl Vinyl Silicone Rubber 500°F / 260°

C & Strong Dielectric Properties

Extension: Teflon PFA Heat Shrink Seal Rated 500°F
/ 260°C & Strong Dielectric Properties

Spring: Stainless Steel SUS304

Boot: Methyl Vinyl Silicone Rubber Rated 500°F /
260°C

Dielectric Grease: DuPont® Krytox 205

Connector Type: 4 Pin Socket

Primary System Voltage: 12 to 14 Volts

Secondary Output Voltage Normal Operational

Range: 28 kV — 32 kV

Secondary Output Voltage Maximum Capacity: 40 kV

E3.275 Coil Extension Packaged: 1 per box, 20 per
case

E3.276 Grommet Packaged: 1 per bag, 30 per case

E3.277 Coil Head Packaged: 1 per box, 20 per case

Trusted by Fleet & Transit Industry Professionals
